Prefabricated Wooden Frame Houses

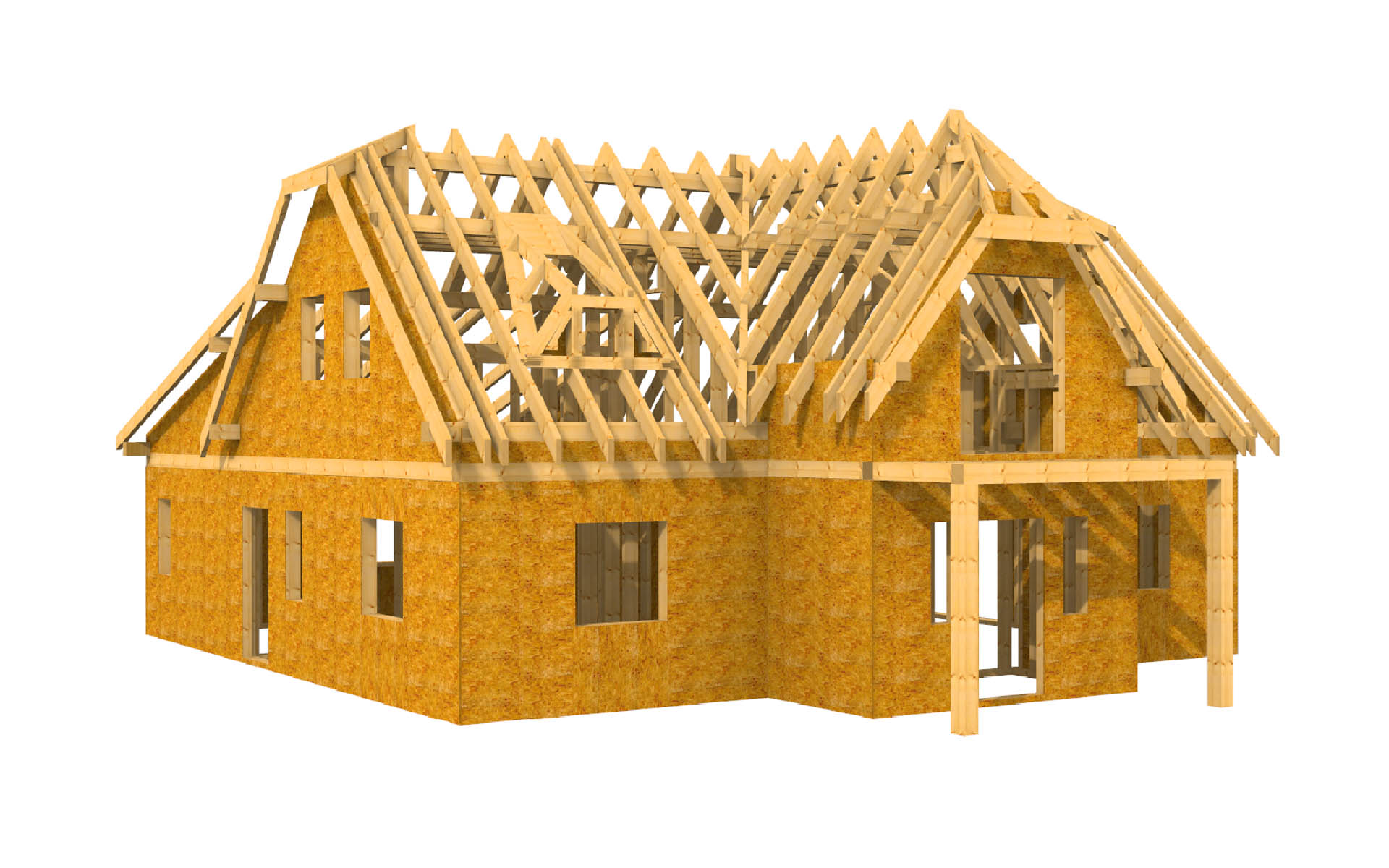

BASIC at 41,390.69 € (without VAT)
External Prefabricated Walls
Thickness: 207 mm
Timber Framework
Softwood board:
Kiln dried (16 %)
Planned, calibrated
Graduated (C24)
Dimensions: 195x72 mm
Wind protection board:
OSB - 3
Thickness – 12 mm
Internal Structural Walls
Thickness: 195 mm
Timber Framework:
Softwood board:
Kiln dried (16%)
Planned, calibrated
Graduated (C24)
Dimensions 195x72 mm
Joists System. Quantity: 1 Set
Joist’s Beams:
Dimensions 95x195 mm (Softwood)
Kiln dried (16 %)
Planned, calibrated
Graduated (C24)
Rafter system. Quantity: 1 Set
Rafters:
Dimensions 70x195 mm (Softwood)
Kiln dried (16%)
Planned, calibrated
Graduated (C24)
Purlins:
Dimensions (boards 70x195 mm; 140x195 mm; 210x195 mm):
Kiln dried (16 %)
Planned, calibrated
Graduated (C24)
Glue – D4 Compatible
Full set of installation hardware.

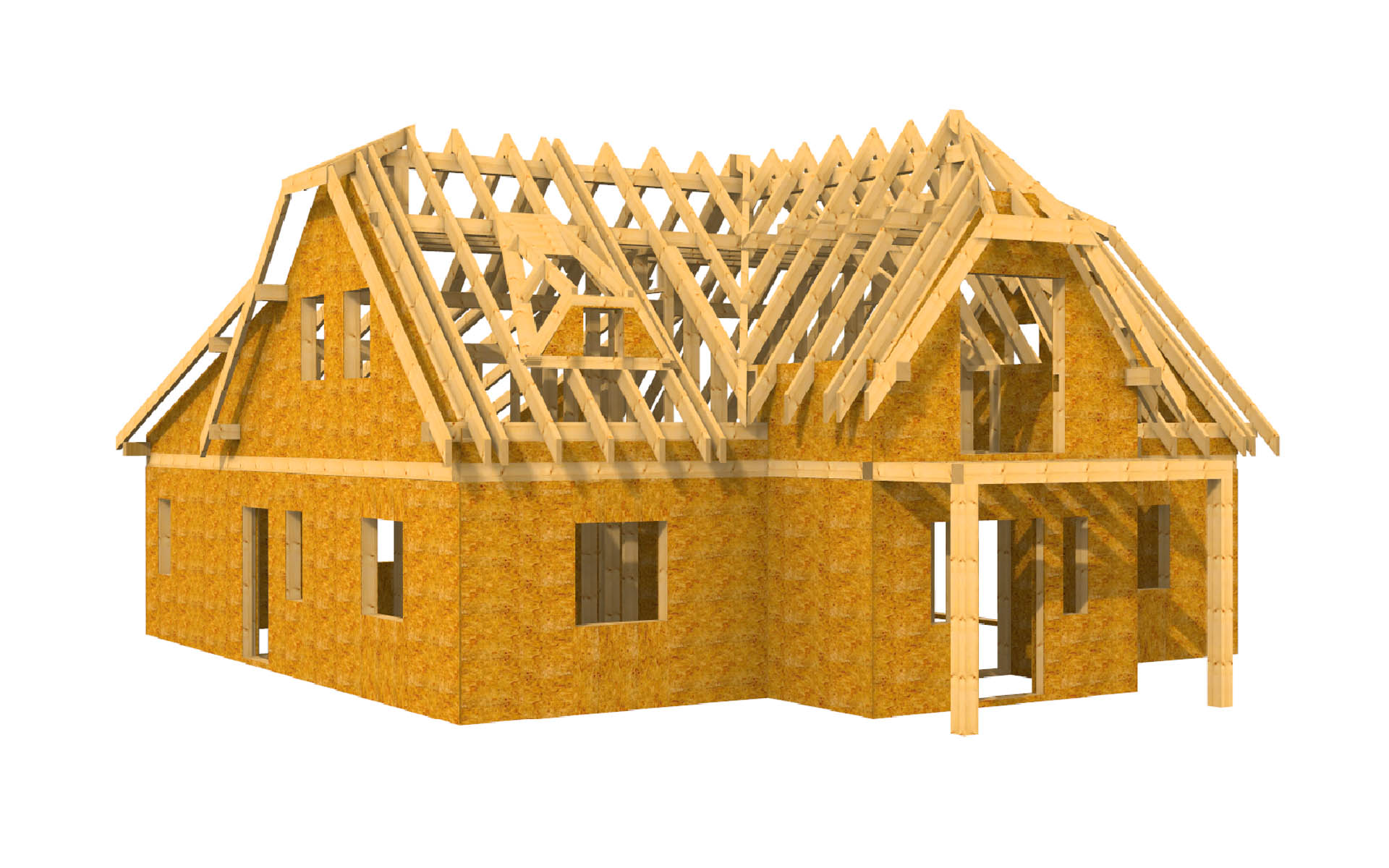

STANDARD at 48,691.00 € (without VAT)
External Prefabricated Walls
Thickness: 219,5 mm
Timber Framework
Softwood board:
Kiln dried (16 %)
Planned, calibrated
Graduated (C24)
Dimensions: 195x70 mm
Wind protection board:
OSB - 3
Thickness – 12 mm
Insulation:
RockWool Superrock:
Lambda D=0.035 W/mK
U-value (200 mm)= 0.175 W/m2K
Euroclass – A1
Internal board:
OSB - 3
Thickness – 12 mm
Internal Structural Walls
Thickness: 195 mm
Timber Framework:
Softwood board:
Kiln dried (16%)
Planned, calibrated
Graduated (C24)
Dimensions 195x72mm
Joists System. Quantity: 1 Set
Joist’s Beams:
Dimensions 95x195 mm (Softwood):
Kiln dried (16%)
Planned, calibrated
Graduated (C24)
Rafter system. Quantity: 1 Set
Rafters:
Dimensions 70x195mm (Softwood):
Kiln dried (16%)
Planned, calibrated
Graduated (C24)
Purlins:
Dimensions (boards 70x195 mm; 140x195 mm; 210x195 mm):
Kiln dried (16%)
Planned, calibrated
Graduated (C24)
Glue – D4 Compatible

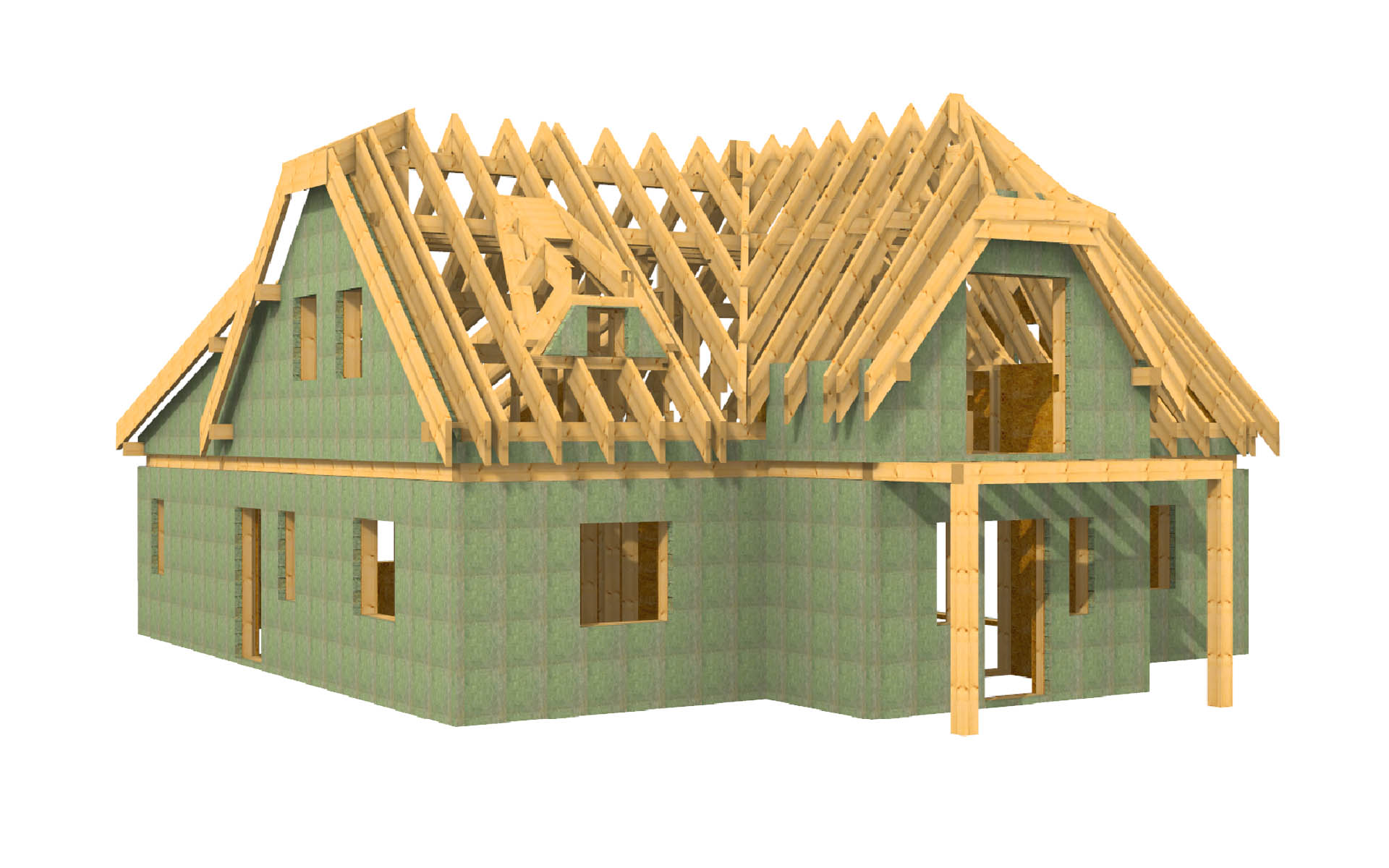

PASSIVE at 71,042.67 € (without VAT)
External Prefabricated Walls
Thickness: 319 mm
Timber Framework
Softwood board:
Kiln dried (16 %)
Planned, calibrated
Graduated (C24)
Dimensions: 195x70 mm
Wind protection board:
OSB - 3
Thickness – 12 mm
Facade membrane:
Density 130 g/m2
Effective thickness of the vapor diffusion 0,015 m
Vapour throughout 80g/m2
Facade insulation:
Rockwool FrontRock MAX E 100 mm:
Lambda D=0.036 W/mk
U-value (200 mm)= 0.175 W/m2K
Euroclass – A1
Internal Insulation:
RockWool Superrock:
Lambda D=0.035 W/mK
U-value (200 mm)= 0.175 W/m2K
Euroclass – A1
Internal board:
OSB - 3
Thickness – 12 mm
Internal Structural Walls
Thickness: 195 mm
Timber Framework:
Softwood board:
Kiln dried (16 %)
Planned, calibrated
Graduated (C24)
Dimensions 195x70 mm
Joists System. Quantity: 1 Set
Joist’s Beams:
Dimensions 95x195 mm (Softwood):
Kiln dried (16%)
Planned, calibrated
Graduated (C24)
Double Glued Rafter system.
Quantity: 1 Set
Rafters:
Dimensions 70x390 mm (Softwood):
Kiln dried (16 %)
Planned, calibrated
Graduated (C24)
Purlins:
Dimensions (boards 70x195 mm; 140x195 mm; 210x195 mm):
Kiln dried (16 %)
Planned, calibrated
Graduated (C24)
Glue – D4 Compatible
Insulation for double rafters
RockWool Superrock :
Lambda D=0.035 W/mk
U-value (400 mm) = 0.0875 W/m2K
Euroclass – A1
Full set of installation hardware.
